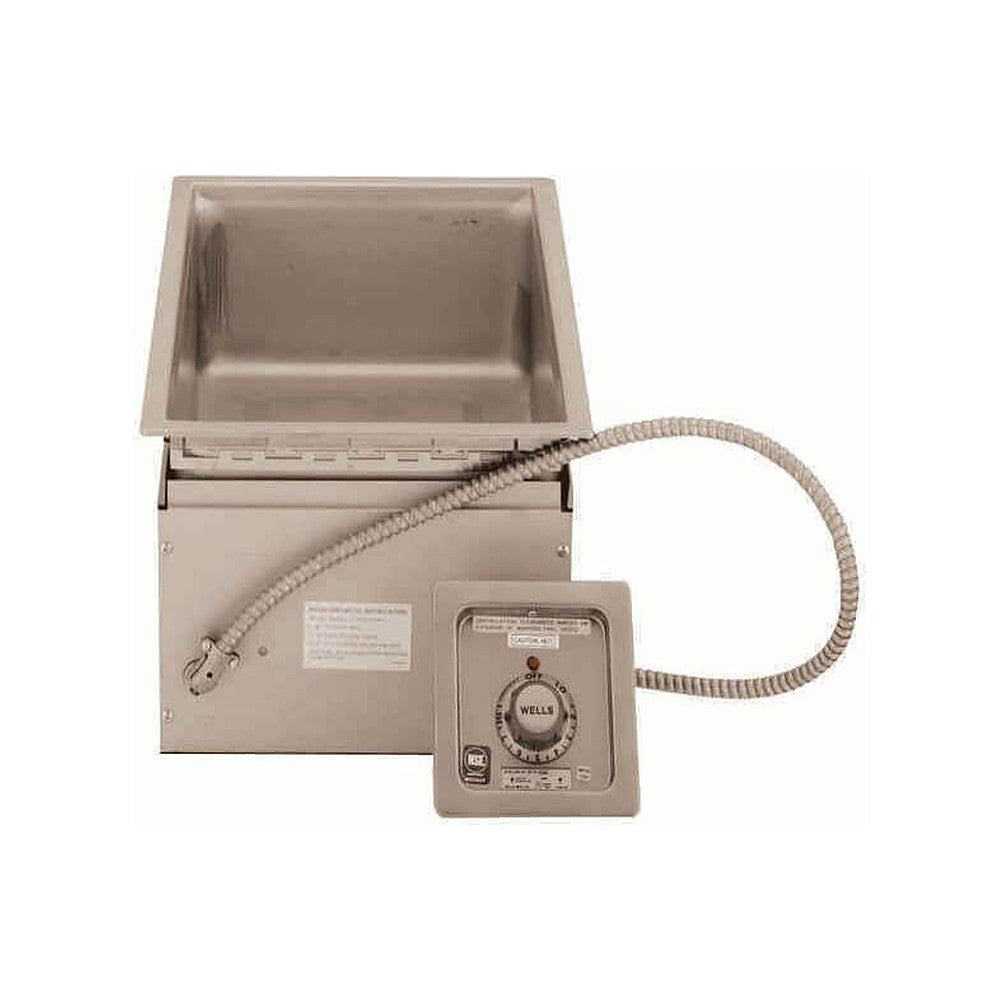

Wells MOD-100TD Insulated Drop-In Hot Food Well, 1 Full-Size Pan, Drain, 208/240V

The Wells MOD-100TD is a heavy-duty, top-mount drop-in food warmer that holds one 12" x 20" full-size pan (or fractional pans) at safe serving temperatures. Full insulation keeps heat in the well and makes it a good fit for non-metal counters, and the recessed thermostatic control is easy to set and keep clean.

Best for:

• Buffet and serving counters built into custom millwork
• Cafeterias, delis and grab-and-go hot cases
• Restaurants adding hot holding to an existing counter

Key specifications:

• Model: MOD-100TD
• Wells: 1 x 12" x 20" full-size, deep-drawn stainless steel
• Electrical: 208/240V, single, 1,240/1,650 W total
• Controls: thermostatic, front-mounted panel
• Drain: 1/2" drain
• Dimensions: 13.75" W x 21.75" D x 9.75" H
• Shipping weight: 24 lb

Features:

• One-piece stainless steel top flange
• Fully insulated sides, front, back and bottom for energy savings
• Wet or dry operation (wet recommended for best results)
• Temperature-ready indicator lights
• High-limit protection against overheating
• Powerful tubular heating elements
• WellsLok clamps for quick installation

Installation notes:

• Top-mount drop-in: cut the counter to the spec sheet cutout and secure with the WellsLok clamps
• Hard-wired; cord and plug kits are optional extras
• Control panel mounts remotely in the counter front
• Connect the drain to a suitable floor drain per local code

Warranty:

• 1 year parts and labor from Wells
