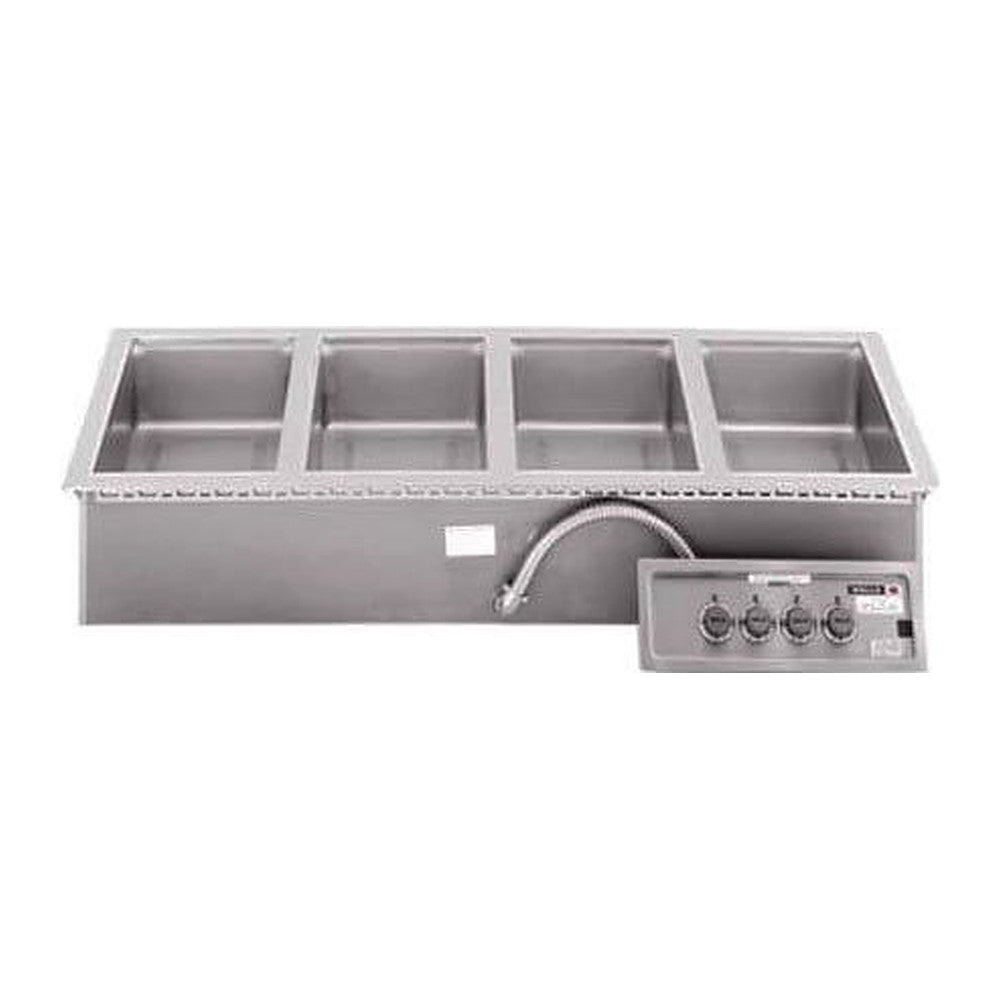

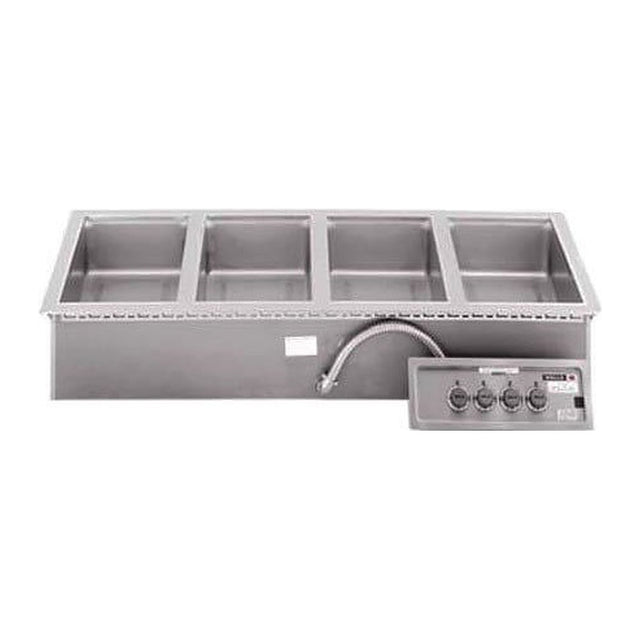

Wells MOD-400TDM Insulated Drop-In Hot Food Well, 4 Full-Size Pans, Drain, 208/240V

The Wells MOD-400TDM is a heavy-duty, top-mount drop-in food warmer that holds 4 12" x 20" full-size pans (or fractional pans) at safe serving temperatures. Full insulation keeps heat in the well and makes it a good fit for non-metal counters, and a separate thermostat for each well lets you set every pan to its own temperature.

Best for:

• Buffet and serving counters built into custom millwork
• Cafeterias, delis and grab-and-go hot cases
• Restaurants adding hot holding to an existing counter

Key specifications:

• Model: MOD-400TDM
• Wells: 4 x 12" x 20" full-size, deep-drawn stainless steel
• Electrical: 208/240V, three, field convertible to single, 4,960/6,600 W total
• Controls: thermostatic, one per well
• Drain: 1/2" drain with manifold
• Dimensions: 57.5" W x 23.6" D x 9.75" H
• Shipping weight: 105 lb

Features:

• One-piece stainless steel top flange
• Fully insulated sides, front, back and bottom for energy savings
• Wet or dry operation (wet recommended for best results)
• Temperature-ready indicator lights
• High-limit protection against overheating
• Powerful tubular heating elements
• WellsLok clamps for quick installation

Installation notes:

• Top-mount drop-in: cut the counter to the spec sheet cutout and secure with the WellsLok clamps
• Ships wired for 3-phase and is field convertible to single phase
• Hard-wired; cord and plug kits are optional extras
• Control panel mounts remotely in the counter front
• Connect the drain to a suitable floor drain per local code

Warranty:

• 2 years parts and 1 year labor from Wells
